Overview
The TXW828 is a low-power, high-performance, highly integrated audio and video wireless SoC chip. It integrates 2.4GHz Wi-Fi, BLE, high-performance ISP image processing, and H.264/MJPEG codec internally, offering excellent RF performance, superior image processing capabilities, encoding quality, and relatively low bit rates. It also includes an internal security algorithm acceleration engine and features a complete set of peripheral interfaces: audio ADC/DAC, MIPI CSI-2, MIPI DSI, DVP, LCD, RMII MAC, USB 2.0 High Speed Host/Device, SDMMC Host, I2S, PDM, and many other rich peripheral interfaces.
Features
- CPU0 with DSP and hardware floating-point Xuantie E804FD, maximum clock speed 240 MHz
- CPU1 with DSP instruction Xuantie E804D, maximum clock speed 240MHz
- 368KB SRAM(MAX 560KB)
- Built-in PSRAM(MAX 16MB)
- H.264/MJPEG Codec(1080P@30fps)
- MIPI CSI-2( 1920*1080@30/fps)
- MIPI DSI with 2/4 lanes
- Built-in ISP(Image Signal Processor)
- 802.11bgn 1x1
- 2.4GHz
- Wi-Fi certified
- USB 2.0 host/device

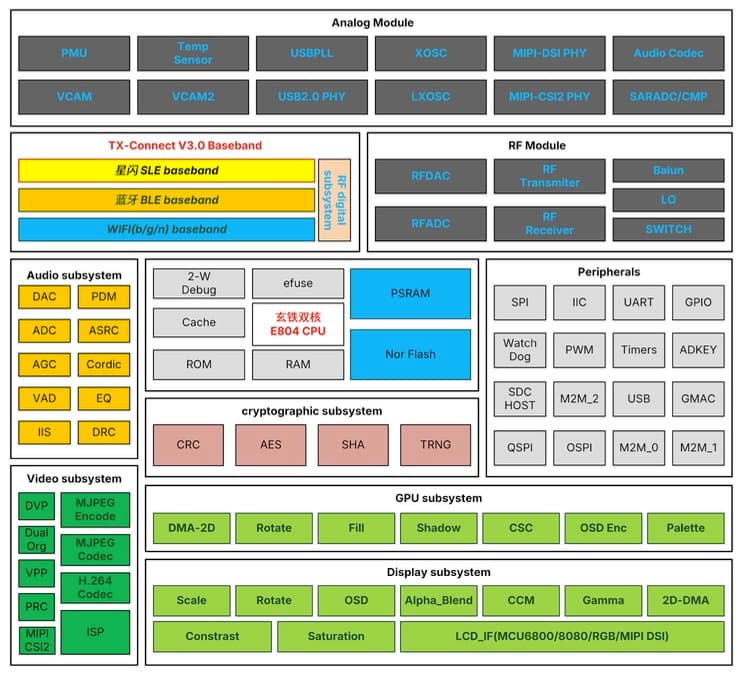

Block Diagram
